Used Wiper Linkage Assembly Fitment Guide

A wiper fault is easy to ignore until the next downpour. If the motor can be heard but the wiper arms barely move, sweep unevenly or stop halfway across the windscreen, a used wiper linkage assembly may be the part that gets the vehicle safely back on the road without the cost of a new dealer item.

The linkage is not a universal part. Its mounting points, arm length, spindle position and motor connection vary between models, engines and production years. Getting the right assembly first time comes down to identifying the fault, confirming the vehicle details and checking the part before fitting it.

What a wiper linkage assembly does

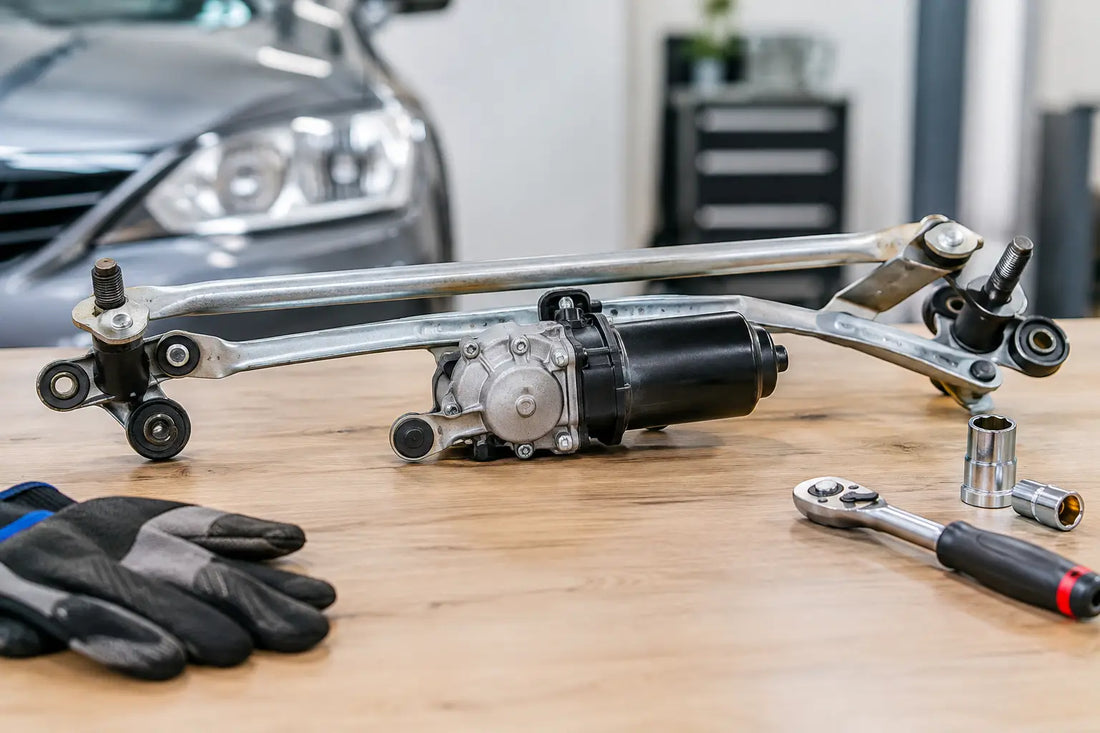

The wiper linkage assembly transfers the rotation of the wiper motor into the back-and-forth movement of the wiper arms. It normally includes the connecting rods, pivots, cranks and wiper spindles mounted to a frame or bracket. Depending on the vehicle, the wiper motor may be included or sold separately.

The system works hard in wet weather, but it is tucked below the plastic cowl panel at the base of the windscreen. Water, leaves and dirt can collect there. Over time, pivot bushes wear, grease dries out, ball joints develop play and corrosion can seize a spindle. The motor then has to work harder than it should, which can eventually damage the motor or blow a fuse.

A replacement linkage is often the sensible repair when the motor is still serviceable but the mechanism has worn or seized. If the motor has also failed, sourcing a complete linkage-and-motor unit can reduce fitting time, provided the connector and mounting arrangement match your vehicle.

Signs the linkage, not just the blades, is the problem

Worn blades leave streaks and chatter on the glass. Linkage problems tend to be more mechanical. You may notice a knocking sound under the cowl panel, one wiper moving while the other stays still, or wipers travelling too far and hitting the windscreen surround.

Another common sign is a wiper arm that can be moved by hand with the system switched off. A little movement can be normal, but excess free play may point to worn linkage joints or spindle bushes. If the arms stop in the wrong position, do not assume the linkage is at fault straight away. A loose arm on its splined spindle, incorrect arm installation or a motor park-position issue can cause the same symptom.

Before ordering parts, inspect the obvious items. Check the wiper-arm retaining nuts, fuse, wiring plug and motor operation. Remove leaves and debris from the plenum area, where safe to do so. If the motor runs but the mechanism binds, slips or has visible play, the linkage deserves closer attention.

Getting the correct used wiper linkage assembly

Vehicle make and model are only the starting point. A Volkswagen Golf, Mitsubishi Pajero, Mitsubishi Triton or Suzuki Swift can have different linkage assemblies across model generations and facelifts. Even within the same generation, right-hand-drive and left-hand-drive vehicles can use different components.

The most reliable identification is the original part number stamped or labelled on the linkage frame, motor or connecting arm. Match that number where possible. If it is not visible, provide the registration, VIN, build year, engine size, body style and whether the vehicle is right-hand drive. Clear photos of the existing assembly, especially the motor plug and mounting points, can prevent a costly mismatch.

It is also worth confirming exactly what is included. A listing described as a linkage assembly may include the frame, rods and spindles only. Another may include the motor, mounting bracket or wiper arms. Buying a motor-inclusive unit is not automatically better. If your original motor is known to work, a linkage-only assembly may be the lower-cost option. If the motor has been straining against seized pivots, a complete tested unit may be better value.

Check the details that affect fitment

A few small differences matter more than they appear. Compare the number and location of mounting bolts, the shape of the motor drive connection, electrical plug design, spindle spacing and the orientation of the crank arm. Rear wiper mechanisms are completely different from front systems, so specify which location you need.

For trade customers, the part number remains the quickest route. For DIY buyers without that information, accurate vehicle details and photos give a parts supplier the best chance of locating the correct used component from dismantler inventory.

What good used condition looks like

Used parts offer genuine savings, but condition checks matter. A quality recycled linkage should have straight rods, secure ball joints, intact mounting points and spindles that rotate freely without excessive side-to-side movement. Surface corrosion on a steel frame can be normal. Heavy rust around pivots, cracked plastic sockets, bent arms or seized spindles are warning signs.

Where a motor is supplied, check that the electrical connector is undamaged and that the motor casing has no obvious water ingress. A tested assembly offers extra confidence, although correct fitment is still essential. Used parts come from real vehicles, so minor cosmetic marks are expected. The focus should be on function, completeness and compatibility.

Do not force a seized linkage into operation with the motor. That can strip internal motor gears or overload the circuit. If a used unit feels stiff before installation, resolve the issue before it goes into the vehicle.

Fitting the assembly without creating a new problem

Wiper linkage replacement can be straightforward for an experienced technician, but access differs widely between vehicles. The cowl panel, wiper arms, scuttle trims and sometimes parts of the dash-side area may need removal. Take photos before dismantling, particularly of the wiper arm positions on the windscreen.

Disconnect the battery if you are unplugging the motor or working close to electrical connections. Remove the wiper arms with the motor in its parked position, then mark their resting position with masking tape. Some arms release easily; others need a puller. Levering hard against the glass or plastic cowl panel is a quick way to turn a linkage repair into a larger job.

Before refitting the arms, install the linkage and run the motor through a cycle with the arms off, if the vehicle procedure allows. This confirms that the motor parks correctly and the linkage travels freely. Fit the arms in their proper parked position, tighten the retaining nuts to the vehicle specification and test the washers and all wipe speeds.

If the arms sweep into each other, strike the A-pillar area or park too high, stop immediately. The arms may be installed in the wrong position, the motor may not be parked, or the linkage may not suit the vehicle. Continuing to run it can crack the windscreen or damage the mechanism.

When a used part is the right call

For an older daily driver, work ute or customer vehicle that needs to get back into service quickly, a used genuine linkage can be a practical choice. Original equipment parts are often made to a higher standard than low-cost alternatives, and a clean tested used unit can provide the correct fit at a more manageable price.

There are cases where new makes more sense. If the vehicle is late-model, still under warranty, used assemblies are showing repeated corrosion issues, or the job requires significant labour to access the linkage, a new replacement may justify the higher upfront cost. The right decision depends on the vehicle, the part’s condition and how long you expect to keep it.

Find A Part Ltd can help match hard-to-source wiper mechanisms when you have the vehicle details or original part number ready. That saves time chasing a part that looks similar but will not mount correctly.

A working wiper system is not a convenience item when conditions turn bad. Confirm the fitment, inspect the assembly and sort the repair before the next wet drive makes the decision for you.
