How to Replace a Car Clock Spring Safely

A horn that has stopped working, steering-wheel buttons that do nothing, or an airbag warning light can all point to one part behind the wheel. To replace a car clock spring correctly, you need the exact unit for the vehicle and a careful approach to the airbag system. This is not a repair to rush or guess your way through.

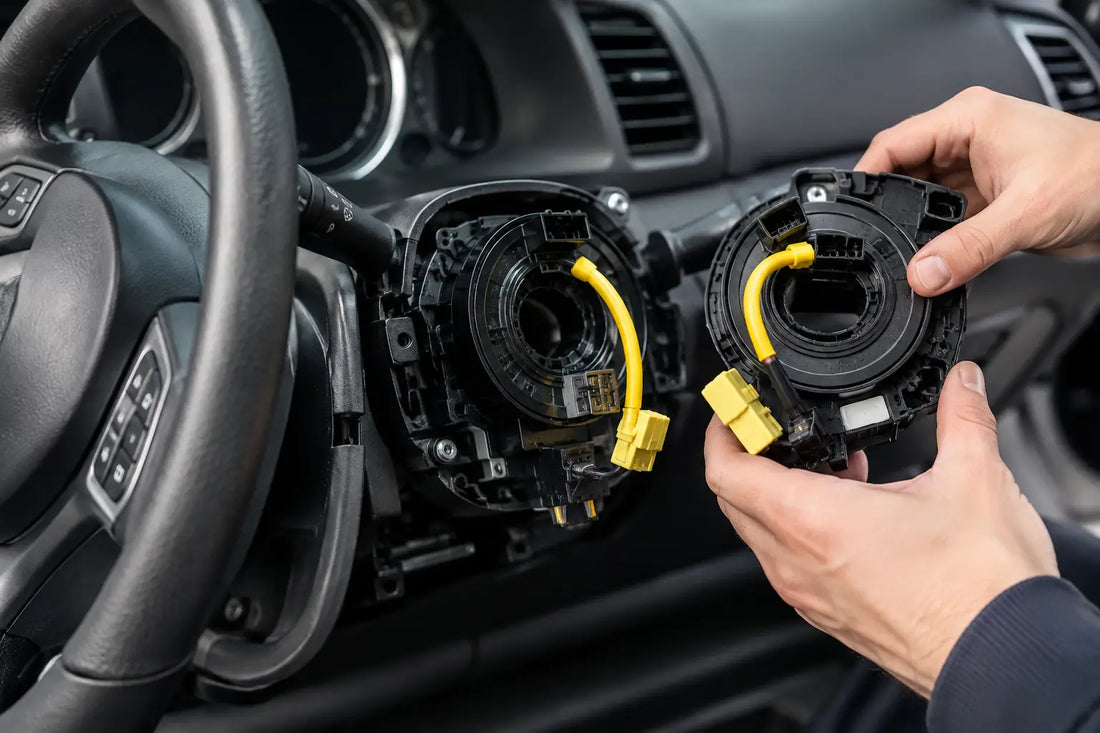

The clock spring, also called a spiral cable or combination switch cable, maintains electrical connections between the fixed steering column and a steering wheel that turns. It carries circuits for the driver airbag, horn, cruise control, audio controls and, on some vehicles, paddle shifters or steering-angle sensors. When its internal ribbon cable breaks, those functions can fail one at a time or all together.

Confirm the Clock Spring Is the Problem

A failed clock spring is common, but it is not the only possible cause of a steering-wheel electrical fault. Start with the symptoms, then rule out the simple items before pulling the wheel apart.

An illuminated SRS or airbag light is a strong clue, particularly when it appears with a non-working horn or steering-wheel controls. A scan tool may show a circuit fault for the driver airbag, horn switch or steering-wheel control circuit. However, fault codes identify the affected circuit, not always the exact failed component. Wiring damage, a poor connector, a blown fuse or a faulty steering-wheel switch can produce similar symptoms.

Listen for a rubbing, clicking or scraping sound while turning the wheel. This can happen when a clock spring has broken internally or has been fitted off-centre and has reached the end of its travel. Do not keep turning a wheel that is binding behind the steering wheel. Further movement can damage the replacement part or related components.

If the airbag warning light is on, treat the system as a safety issue rather than simply an electrical annoyance. The vehicle may still drive normally, but the driver airbag could be unavailable in a collision.

Get the Right Replacement Clock Spring

Clock springs are vehicle-specific. Two units that look nearly identical can have different plugs, circuit counts, steering-angle sensor provisions or mounting tabs. Matching only by make, model and year is not always enough, especially where a vehicle has multiple trim levels or optional steering-wheel controls.

The best match is the original part number from the label on the existing assembly. If that is not available before dismantling, provide the VIN, build date, engine type, transmission, trim level and clear photos of the connectors. For trade buyers, the part number and a photo of the rear plugs usually speed up identification considerably.

Check whether the replacement includes the steering-angle sensor or whether your original sensor transfers across. Some vehicles integrate this sensor with the clock spring, while others use a separate module. This matters because the sensor may need calibration after refitting, particularly on vehicles with stability control, lane-assist features or advanced driver assistance systems.

Used genuine units can be a practical option when the part is scarce or new dealer pricing does not make sense. The trade-off is that condition and part-number matching matter even more. A dismantler-supplied part should be identified by its vehicle application and connector layout, not selected simply because it is cheaper.

Tools and Safety Before You Start

Replacing a clock spring involves removing the driver airbag and steering wheel. If you are not comfortable working around an SRS system, book the job with a qualified auto electrician or workshop. A mistake can trigger an airbag fault, damage expensive trim or create a safety risk.

Before starting, have the correct socket set, trim tools, a steering-wheel puller if required by the vehicle, a torque wrench and a scan tool suited to the vehicle. Avoid improvised pullers or striking the steering shaft. You may also need a small pick or screwdriver to release airbag retaining springs.

Park with the front wheels pointing straight ahead and the steering wheel centred. This position is critical. Turn the ignition off, remove the key or move the keyless remote away from the vehicle, then disconnect the negative battery terminal. Follow the vehicle manufacturer’s specified waiting period before touching any SRS connectors. Waiting allows stored energy in the airbag system to discharge.

Do not test airbag circuits with a standard test light or multimeter unless the workshop manual specifically instructs it. Never probe the airbag connector, apply power to an airbag module or place the removed airbag face down. Store it with the trim cover facing upward, away from heat, static electricity and anyone working nearby.

How to Replace a Car Clock Spring

The exact process differs by vehicle, but the working order is broadly the same. Use a workshop manual for the model in front of you, especially for airbag removal points and steering-wheel torque settings.

Remove the airbag and steering wheel

With the battery disconnected and the waiting time complete, access the airbag retaining clips or bolts from the rear of the steering wheel. Release the airbag carefully and support it while disconnecting its electrical plugs. Most SRS plugs use a secondary lock, often coloured yellow or orange. Release the lock gently rather than forcing the connector.

Mark the relationship between the steering wheel and steering shaft if the factory alignment marks are unclear. Remove the steering-wheel retaining bolt or nut, but leave it threaded on by a few turns while freeing the wheel from the splines. This prevents the wheel from coming loose suddenly.

Pull the steering wheel straight towards you. If it will not move, use the correct puller points. Do not pull on wiring or rotate the steering shaft once the wheel is removed.

Remove the column shrouds and old unit

Remove the upper and lower steering-column covers. The screws may be underneath the column or hidden behind small trim caps. Once the shrouds are off, unplug the clock spring connectors and note their routing. Take photos before disconnecting anything, particularly where multiple plugs and stalk switches are fitted together.

Release the retaining clips or screws and slide the old clock spring off the column. Check the plugs, column wiring and switch assemblies for heat damage, broken locks or corrosion before fitting the replacement. A damaged connector can cause the same fault to return after a new part is installed.

Centre the replacement before fitting

This is the step that prevents many repeat repairs. A clock spring has a limited number of turns in either direction. It must be centred with the road wheels straight ahead, otherwise it can tear internally when the steering reaches full lock.

Many new or replacement units arrive locked in the centred position with a transport pin, tape or alignment window. Leave that lock in place until the unit is mounted. If the part is not locked, follow the markings on the housing or the manufacturer procedure. Usually, this involves turning the inner section gently to one end, then rotating it back the specified number of turns to centre it. Do not force it at either end of travel.

Fit the centred unit onto the column without rotating it. Connect all plugs securely, refit the column shrouds and install the steering wheel using the alignment marks. Tighten the steering-wheel fastener to the vehicle manufacturer’s torque specification. Reconnect the airbag plugs, ensure their locks are fully engaged and secure the airbag to the wheel.

Checks After Replacement

Reconnect the battery only after the steering wheel and airbag are fully installed. Switch the ignition on from outside the direct path of the airbag if practical. The SRS warning light should illuminate briefly during its self-check and then go out. If it stays on, scan the vehicle for codes and inspect the connectors before assuming the replacement clock spring is faulty.

Check the horn, steering-wheel audio controls, cruise control and any mobile phone buttons. With the vehicle stationary, turn the steering smoothly from near full left to near full right. There should be no scraping, clicking or resistance from behind the wheel.

If the vehicle has a steering-angle sensor, it may require a calibration procedure with a suitable scan tool. Warning lights for stability control, traction control or driver-assistance functions after the repair can indicate that calibration is required, not necessarily that the clock spring has been fitted incorrectly.

When It Is Better to Use a Workshop

A competent DIYer can replace a clock spring on many common vehicles, but some jobs are better handed over. Seek workshop help if the airbag is difficult to release, the steering wheel is seized, the replacement part needs coding, or the vehicle has several warning lights and complex driver-assistance systems.

For workshops and owners sourcing the part first, accurate vehicle details save time. Supplying the VIN, original part number and photos of both sides of the old unit gives the best chance of getting the right part the first time. Find A Part Ltd can assist with hard-to-source genuine and replacement components where a correct match matters more than a quick guess.

A clock spring is a small part with a big safety role. Take the time to centre it, secure every connector and clear any faults properly, and the repair can restore the controls you use every time you drive.
